Honors ICS - 3 Gates

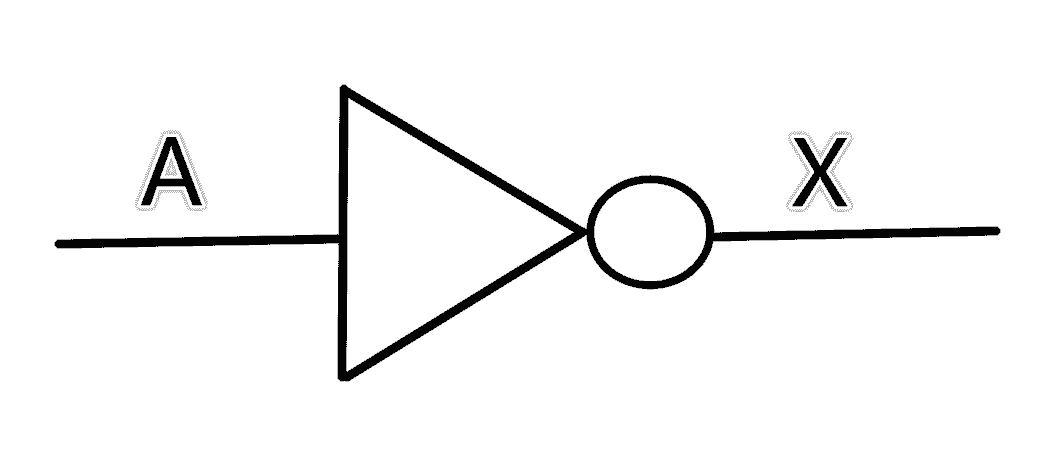

The Invertor

The NOT operator.

image-20260909173900542

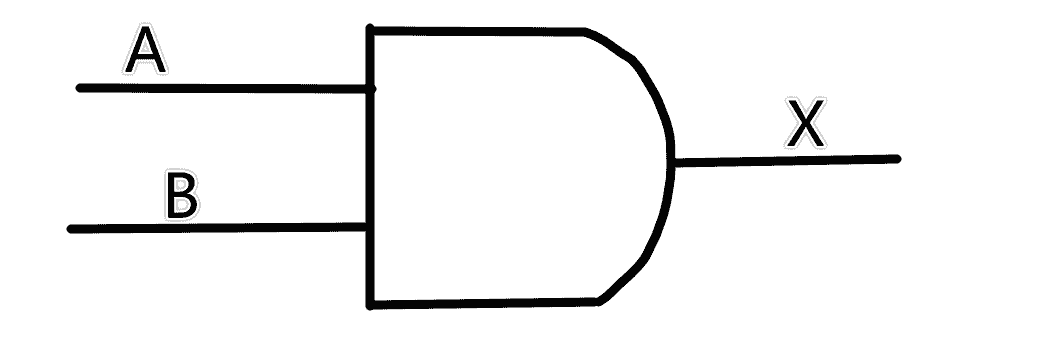

The AND Gate

image-20260909174135013

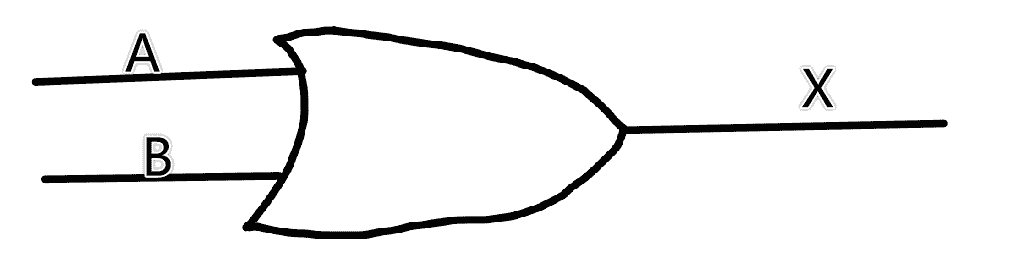

The OR Gate

image-20260909174615610

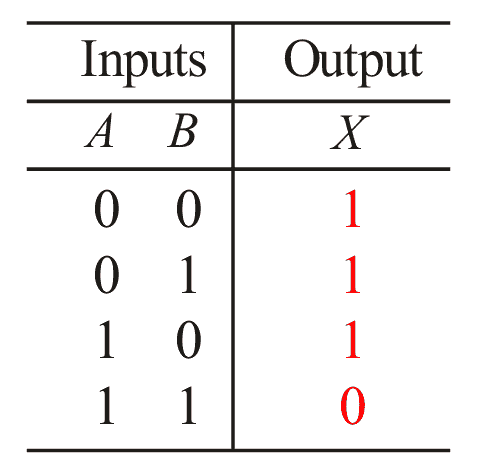

The NAND Gate

Produces a LOW output when all inputs are HIGH.

image-20260909175012868

image-20260914164432046

It is even more fundamental ! It can represent all the AND, OR, NOT operation!

  • NOT A = A NAND A
  • A AND B = (A NAND B) NAND (A NDAN B)
  • A+B=A+B‾‾=A‾⋅B‾‾=A⋅A‾⋅B⋅B‾‾A+B=\overline{\overline{A+B}}=\overline{\overline{A}\cdot\overline{B}}=\overline{\overline{A\cdot A}\cdot \overline{B\cdot B}} = (A NAND A) NAND (B NAND B)

De Morgan’s Law :

A+B‾=A‾⋅B‾A⋅B‾=A‾+B‾\overline{A+B}=\overline{A}\cdot\overline{B}\\ \overline{A\cdot B}=\overline{A}+\overline{B}

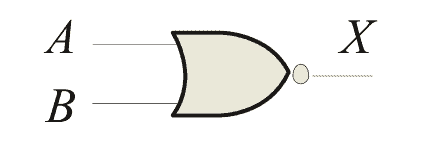

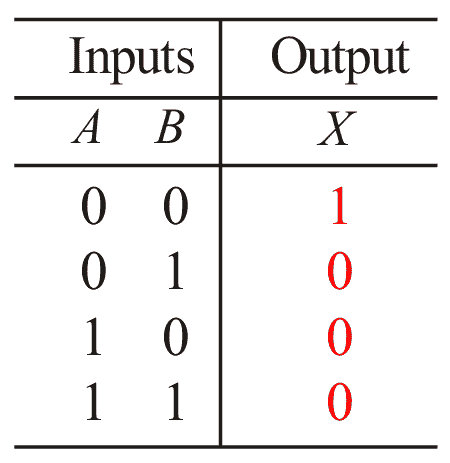

The NOR Gate

image-20260914164124567

image-20260914164414747

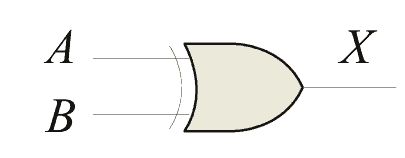

The XOR Gate

image-20260914164744603

The XNOR Gate
